TEXONIC

TEXONIC RX84 4-Zone Wi-Fi Whole-Home Audio System with 8 CM610 In-Ceiling Speakers

TEXONIC RX84 4-Zone Wi-Fi Whole-Home Audio System with 8 CM610 In-Ceiling Speakers

RX84-610.8

$1,469.91 CAD
$1,469.91 CAD
Sale Sold out
Shipping calculated at checkout.
4-Zone Wi-Fi Whole-Home Audio Package

TEXONIC RX84 4-Zone Wi-Fi Home Audio System with 8 CM610 In-Ceiling Speakers

The TEXONIC RX84 4-Zone Wi-Fi Whole-Home Audio System is a complete package for enjoying music across four independently controlled areas of the home.

This package combines one TEXONIC RX84 8-channel network streaming amplifier with eight CM610 6.5" in-ceiling speakers. Two speakers are used in each zone, creating four independent stereo listening areas from one centralized amplifier.

4 Independent Stereo Zones 8 × CM610 Ceiling Speakers 50W × 8 at 8Ω AirPlay / Spotify / Tidal 192kHz / 24-bit Decoding
Manual

Product Overview

The RX84-610.8 package is designed for whole-home music where different rooms or areas need separate control. Each zone can be controlled independently for volume, EQ, source selection and zone naming.

The RX84 supports network music streaming, including AirPlay, Spotify Connect, Tidal Connect, DLNA, UPnP and Qplay. Optical, coaxial, RCA analogue and USB inputs provide extra source flexibility.

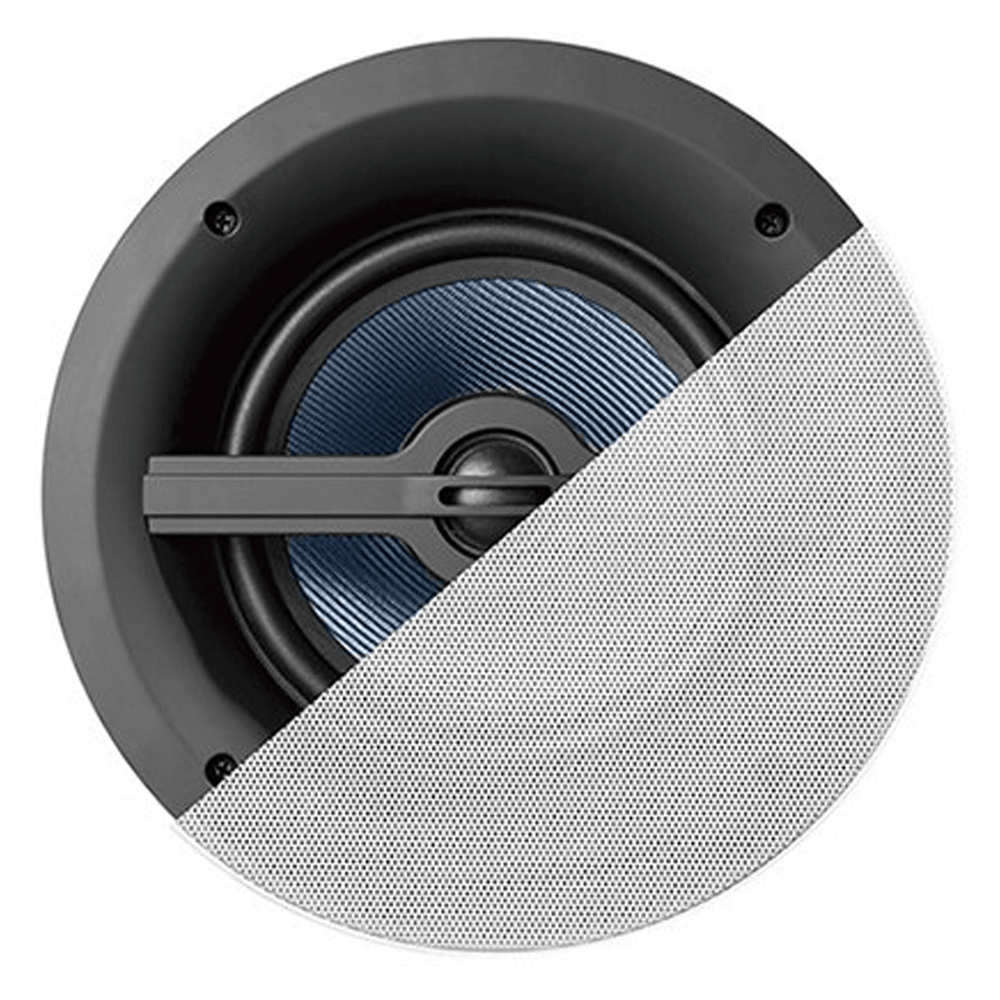

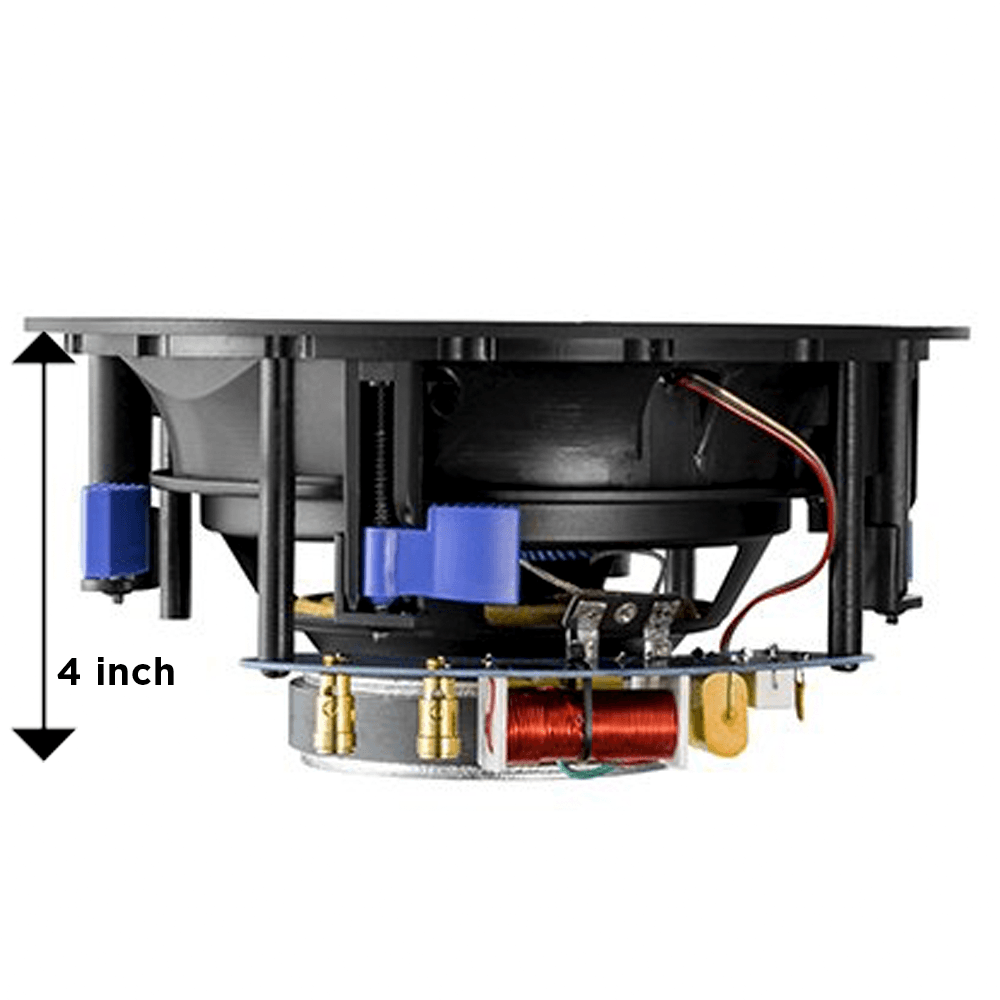

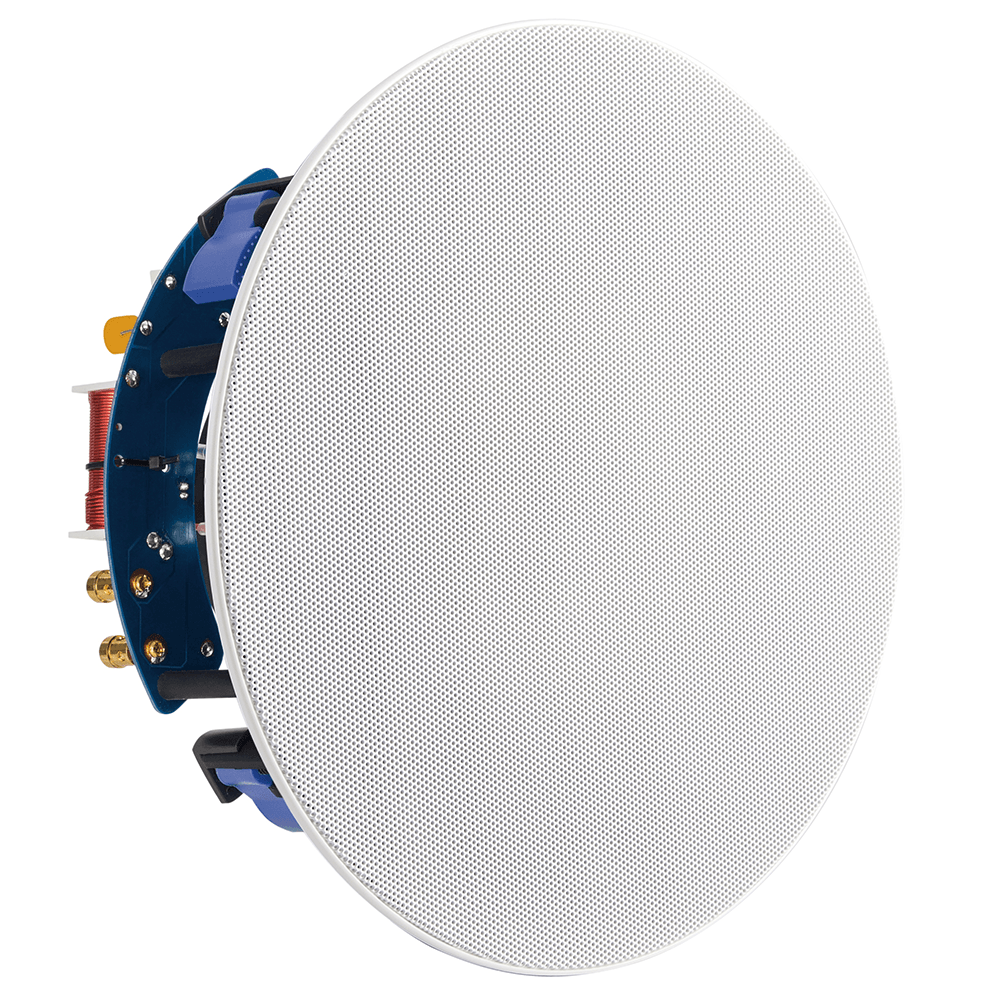

The included CM610 speakers use 6.5" polypropylene woofers, pivoting 0.75" silk-dome tweeters, magnetic paintable grilles and a tool-free auto-locking ceiling installation system for a clean residential finish.

Best For Living rooms, kitchens, bedrooms, dining areas, basements and other residential multi-room audio applications.
System Fit Homes that need four independent stereo listening areas from one centralized 8-channel network streaming amplifier.

Key Features

  • Complete 4-zone whole-home audio package
  • Includes 1 RX84 amplifier and 8 CM610 in-ceiling speakers
  • Four independent stereo audio zones
  • Two CM610 speakers per zone
  • Eight amplified channels
  • 50W × 8 channels into 8Ω
  • 100W × 4 bridged output into 4Ω
  • Independent zone volume control
  • Independent EQ, input selection and zone naming
  • Multi-room network music streaming
  • Synchronized playback across multiple zones
  • AirPlay and AirPlay 2 RX84 versions available
  • Spotify Connect and Tidal Connect support
  • DLNA, UPnP and Qplay support
  • High-resolution audio decoding up to 192kHz / 24-bit
  • Optical, coaxial and RCA audio inputs
  • USB music playback
  • RJ45 Ethernet network connection
  • 6.5" CM610 in-ceiling speakers
  • Tool-free auto-locking ceiling speaker installation
  • Magnetic paintable speaker grilles
  • Designed for residential whole-home and multi-room audio

Specifications

Brand TEXONIC
Package SKU RX84-610.8
System Type 4-zone Wi-Fi / network whole-home audio system
Number of Zones 4 independent stereo zones
Number of Speakers 8
Speaker Configuration 2 speakers per zone
Recommended Application Residential multi-room and whole-home music systems
Amplifier Model RX84
Amplifier Type Class-D network streaming amplifier
Amplifier Channels 8
Audio Zones 4 independent zones
Power Output at 8Ω 50W × 8 channels
Bridged Output at 4Ω 100W × 4 channels
Audio Decoding Up to 192kHz / 24-bit
Supported Formats FLAC, WAV, APE, AAC, MP3 and ALAC
Streaming AirPlay, Spotify Connect, Tidal Connect, DLNA, UPnP and Qplay
Available Versions AirPlay Version / AirPlay 2 Version
Audio Inputs Optical, coaxial, RCA analogue and USB host
Network Connection RJ45 Ethernet
USB Playback Supported
Zone Control Independent volume, EQ, input and zone naming
Power Input 115–230V AC, 50/60Hz
Speaker Model CM610
Speaker Type 6.5" 2-way in-ceiling speaker
Speaker Woofer 6.5" polypropylene cone
Speaker Tweeter 0.75" pivoting silk dome
Speaker Frequency Response 70Hz–20kHz
Speaker Sensitivity 87dB
Speaker Impedance 8Ω each
Maximum Speaker Power 80W each
Speaker Grille Round magnetic paintable grille
Ceiling Cut-Out 8.25" diameter
Speaker Installation Tool-free auto-locking ceiling mounting system
Compatibility Note: This package uses compatible low-impedance 8Ω speaker wiring. It is not a 70V/100V distributed speaker system.

System Configuration

The eight CM610 speakers connect directly to the eight amplified channels of the RX84. Each CM610 is an 8Ω speaker, allowing one speaker to connect to each RX84 amplified channel.

Zone 1 2 × CM610 speakers
Zone 2 2 × CM610 speakers
Zone 3 2 × CM610 speakers
Zone 4 2 × CM610 speakers

This layout provides four independently controlled stereo listening areas. Each zone can be used for a different room or area, or multiple zones can play synchronized music when needed.

Important: This system is designed for compatible low-impedance 8Ω speaker wiring. Do not connect the CM610 speakers to a 70V or 100V amplifier output.
Installation Reminder: Confirm speaker wiring, polarity, ceiling dimensions and amplifier connections before installation.

What’s Included

1 × TEXONIC RX84 8-channel 4-zone network streaming amplifier
8 × TEXONIC CM610 6.5" in-ceiling speakers
1 × RX84 power cable
1 × RX84 rack-mount kit
1 × RX84 user guide / manual access via Manual button
8 × CM610 cut-out templates
8 × CM610 lock-in installation tools
User manual
Installation Reminder: Confirm all speaker locations, ceiling clearance, wiring paths and speaker polarity before installation. This package is designed for four stereo zones with one CM610 connected to each RX84 amplifier channel.
