Whole-House Audio System | Wi-Fi Streaming | 4 Channel stereo

Whole-House Audio System | Wi-Fi Streaming | 4 Channel stereo

RX800

$1,489.99 CAD
$1,489.99 CAD
Sale Sold out
Shipping calculated at checkout.
Add Keypad Kit Option:
Whole-House Wi-Fi Audio System

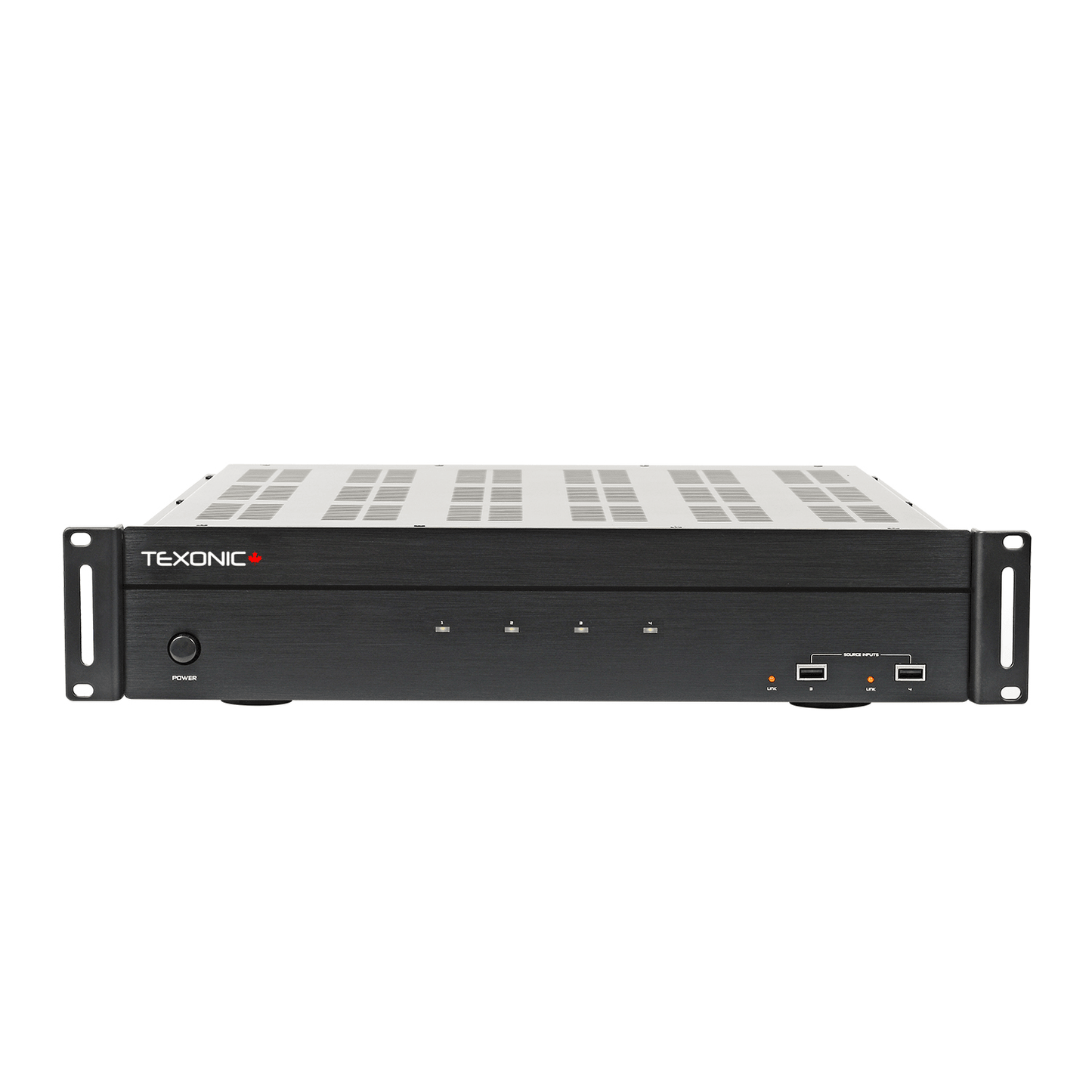

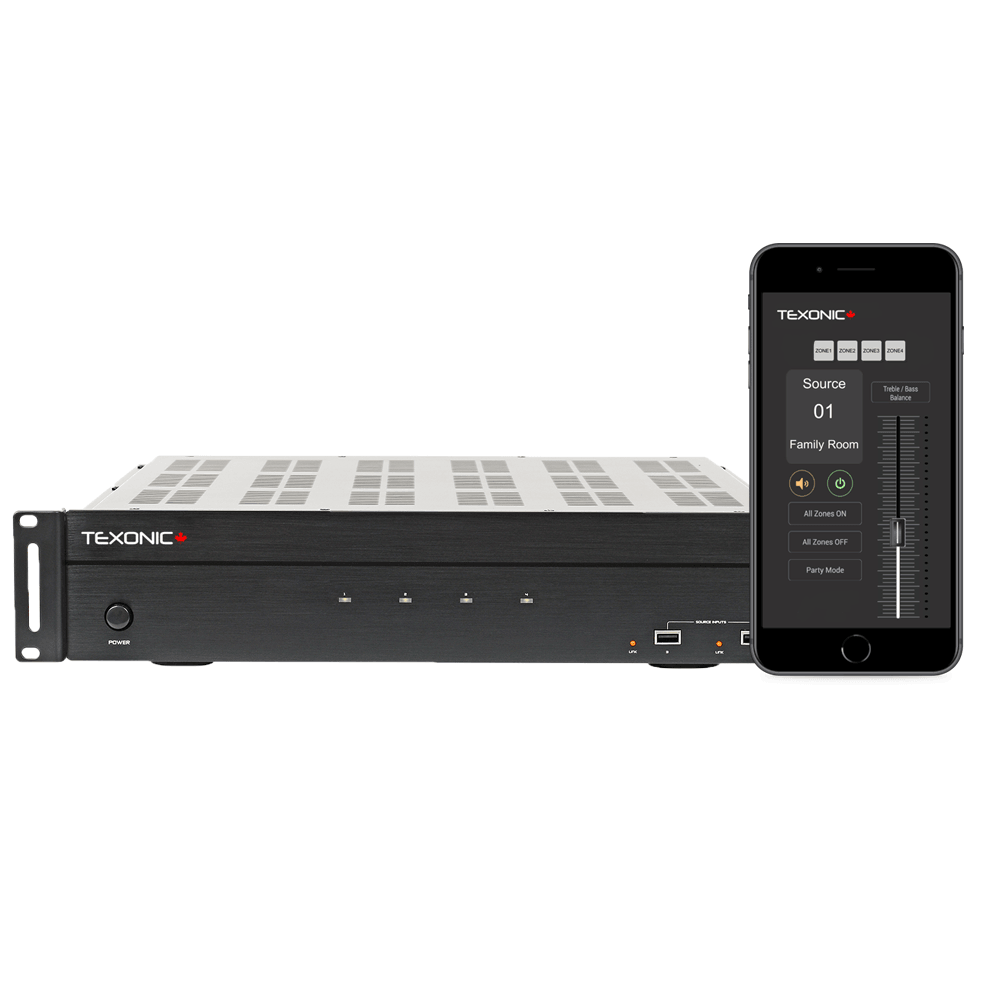

TEXONIC RX800 4-Zone Whole-House Audio System

The TEXONIC RX800 is a whole-house audio system designed for 4-zone multi-room music with Wi-Fi streaming and centralized audio distribution.

The system includes two built-in Wi-Fi audio streamers, six input sources and high-performance Class-D amplification. It can be controlled by the TEXZONE app and can expand up to 12 zones when additional RX800 units are linked.

4-Zone Multi-Room Audio 2 Built-In Wi-Fi Streamers 6 Source Inputs Expandable up to 12 Zones 19" Rackmount Design
  Manual

Product Overview

The RX800 is designed for homes where music is needed in several rooms or areas. It gives you 4-zone audio control from one rackmount amplifier, making it suitable for living rooms, kitchens, dining rooms, bedrooms, basements and other home audio areas.

Two built-in Wi-Fi streamers allow convenient music playback from supported streaming services and smart devices. The product page lists Spotify, TuneIn, Deezer and more, with Android and iOS AirPlay compatibility.

Six input sources allow different connected sources to be distributed through the system. The RX800 also supports USB playback, local network control and expansion up to 12 zones using additional linked RX800 units.

Best For Whole-house music, multi-room audio, living rooms, kitchens, bedrooms, basements, dining areas and home entertainment spaces.
System Fit Homes that need centralized 4-zone audio with Wi-Fi streaming, multiple input sources and future zone expansion.
Planning Note: Speaker compatibility and wiring depend on the selected stereo or bridged mode. Confirm speaker impedance, wiring polarity and zone layout before installation.

Key Features

  • Whole-house 4-zone multi-room audio system
  • Two built-in Wi-Fi audio streamers
  • 6 source input design
  • High-performance Class-D amplification
  • Expandable up to 12 zones with additional linked units

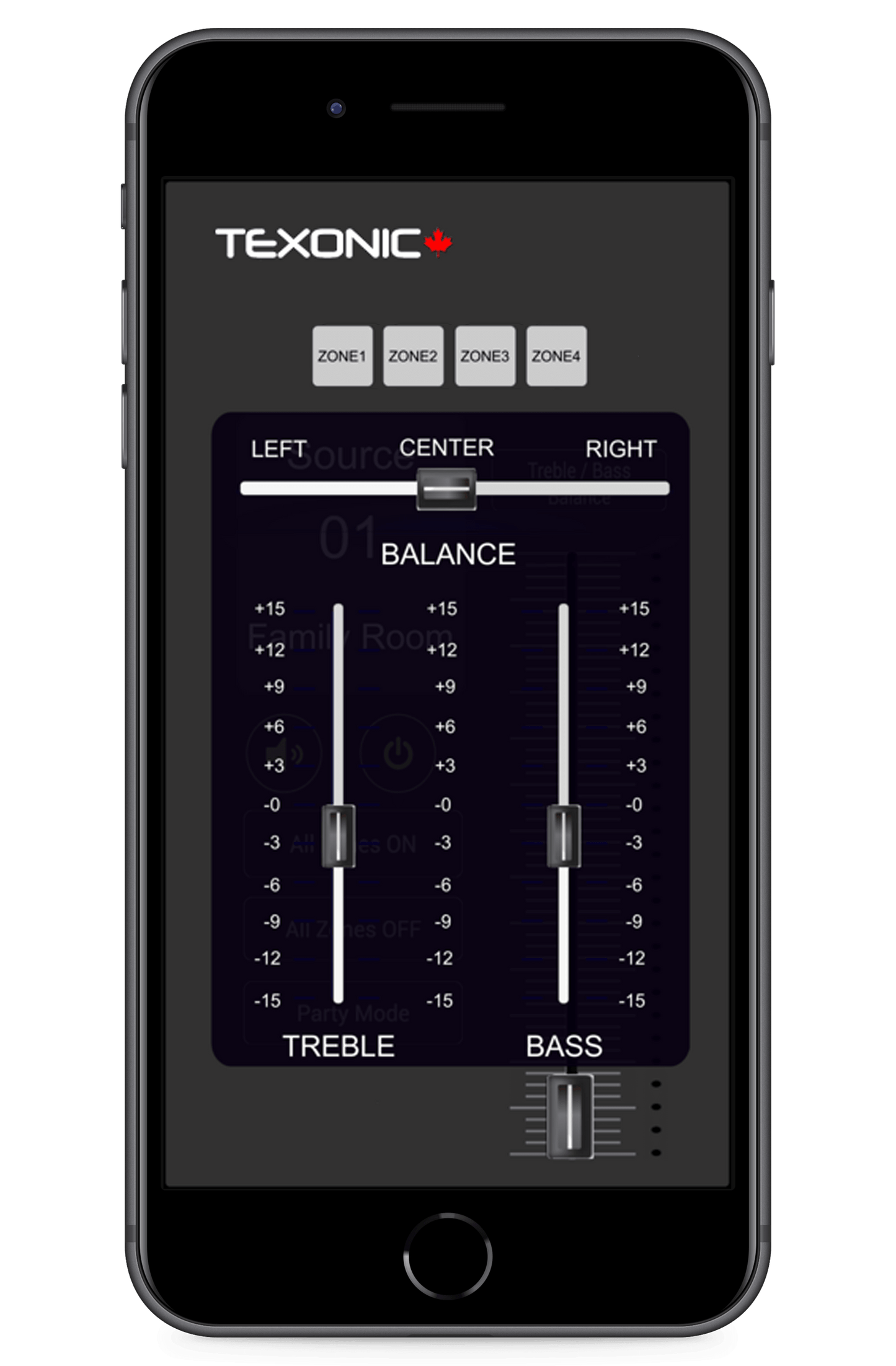

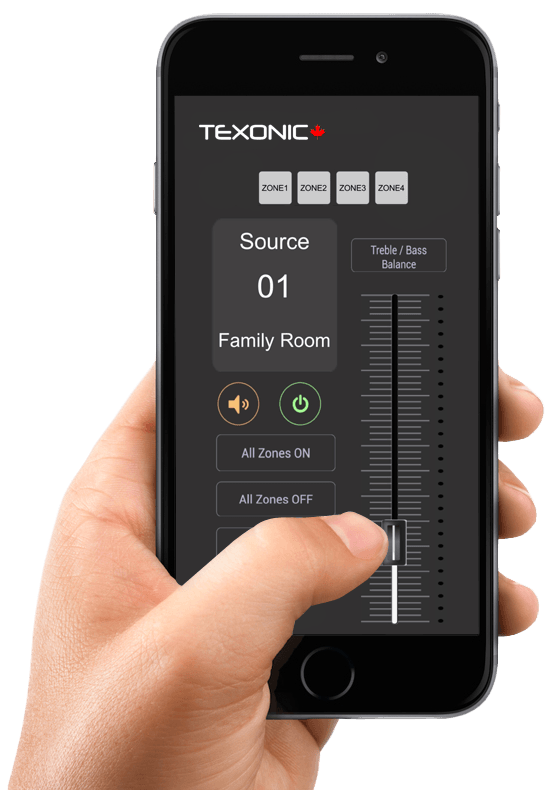

  • TEXZONE app control for everyday operation
  • Compatible with Android and iOS AirPlay
  • Streaming support listed for Spotify, TuneIn, Deezer and more
  • USB playback for supported audio files
  • USB audio format support: MP3, WMA, AAC, AAC+, ALAC, FLAC, APE and WAV
  • Frequency response of 20Hz–20kHz
  • Stereo or bridged zone operation
  • 4Ω and 8Ω speaker system compatibility depending on mode
  • Pre-amp output available on Zone 1 to Zone 4
  • 12V DC trigger output for external equipment
  • 12V DC mute trigger input
  • Ethernet control via RJ45 network connection
  • RS-232 communication for compatible automation systems
  • Overload and short-circuit protection
  • 19" rackmount design

Specifications

Brand TEXONIC
Model / SKU RX800
Product Type Whole-house Wi-Fi multi-room audio system
Audio Zones 4 zones
Source Inputs 6 line input sources
Built-In Streamers 2 Wi-Fi audio streamers
Expansion Expandable up to 12 zones with additional linked RX800 units
Output Power at 4Ω 80W × 2 per zone listed on product page
Output Power at 8Ω 40W × 2 per zone listed on product page
Bridged Output 120W per zone bridged at 8Ω listed on product page
Frequency Response 20Hz–20kHz
Product Page Input Connections Input 1–2 RCA jacks, Input 3–4 streaming or USB, Input 5 3.5 mm jack, Input 6 S/PDIF / 3.5 mm
USB Audio Formats MP3 / WMA / AAC / AAC+ / ALAC / FLAC / APE / WAV
Streamer Support from Manual DLNA / AirPlay
Manual Streamer Sampling Rate 24-bit / 48kHz
USB Type from Manual USB 2.0, supports up to 64G
Network RJ45, standard 10/100Mb
Output Connection 4P terminal block
Protection Function Overload and short circuit
Power Supply from Manual AC115V / 60Hz or 230V / 50Hz
Product Dimensions 430 mm × 89 mm × 416 mm (W × H × D)
Product Page Weight 12 kg
Condition Brand new
Warranty 2-year manufacturing warranty listed for TEXONIC products

Control, Network & Expansion

The RX800 is designed for app, keypad, IR and automation control. It can connect to a local router using Ethernet for app control and network operation.

App & Network Control Connect the RX800 to the local network using the RJ45 Ethernet connection. Smart devices should be on the same local network for app control.
Keypad Option The product page lists an optional keypad kit with 4 keypads, 1 keypad hub and 1 infrared remote control.
IR Routing The manual describes IR routing through the keypad and amplifier system so selected source devices can be controlled from the correct zone.
Expansion The RX800 can distribute 6 sources to up to 12 zones when additional units are linked and configured using Master / Slave settings.
Pre-Amp Outputs Zone 1 to Zone 4 include pre-amp outputs for connecting additional amplification or powered subwoofers.
Automation Control RS-232 support allows compatible third-party automation systems to control supported RX800 functions.
Important: Set the rear Ethernet / RS-232 switch to the correct position for the control method being used. Do not connect or configure network and control wiring without checking the manual first.
Connection Reminder: The product page lists the keypad kit as an option. Do not assume keypads are included unless the keypad kit option is selected.

What’s Included

1 × TEXONIC RX800 whole-house audio system
19" rackmount hardware
Zone expansion cable
Phoenix speaker terminal
AC power cable
User manual
Available Options Listed on Product Page: 4-keypad kit option with 4 keypads, 1 keypad hub and 1 infrared remote control. Additional remote controllers are also listed as an option.
Installation Reminder: Confirm speaker impedance, stereo or bridged mode, zone wiring, network wiring and input-source layout before installation. Turn off the amplifier before connecting speakers, keypads, source devices or expansion cables.
