TEXONIC X4000 4-Zone 70V Matrix Amplifier

TEXONIC X4000 4-Zone 70V Matrix Amplifier

X4000

$999.99 CAD
$999.99 CAD
Sale Sold out
Shipping calculated at checkout.
4-Zone Commercial Matrix Amplifier

TEXONIC X4000 4-Zone 70V Matrix Amplifier

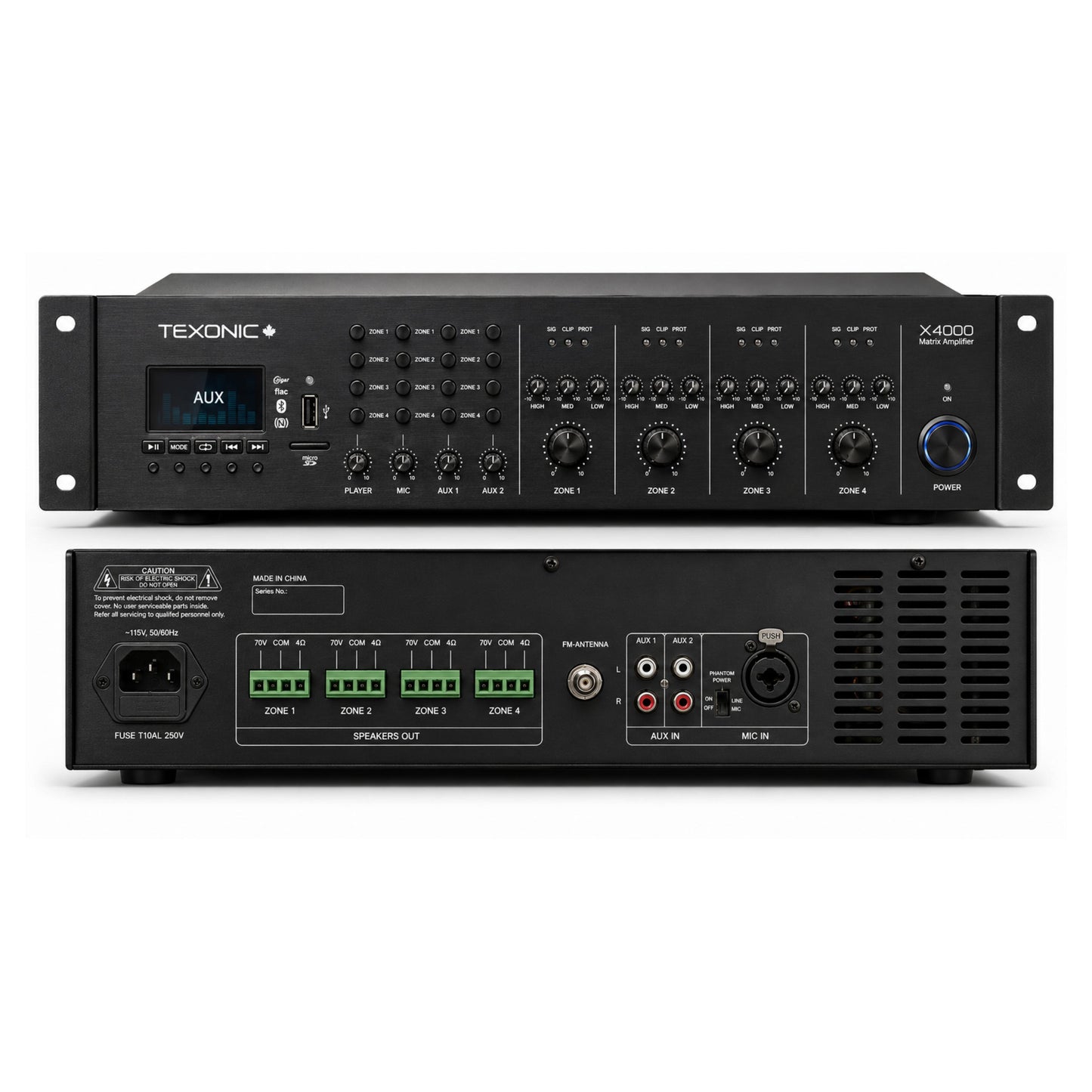

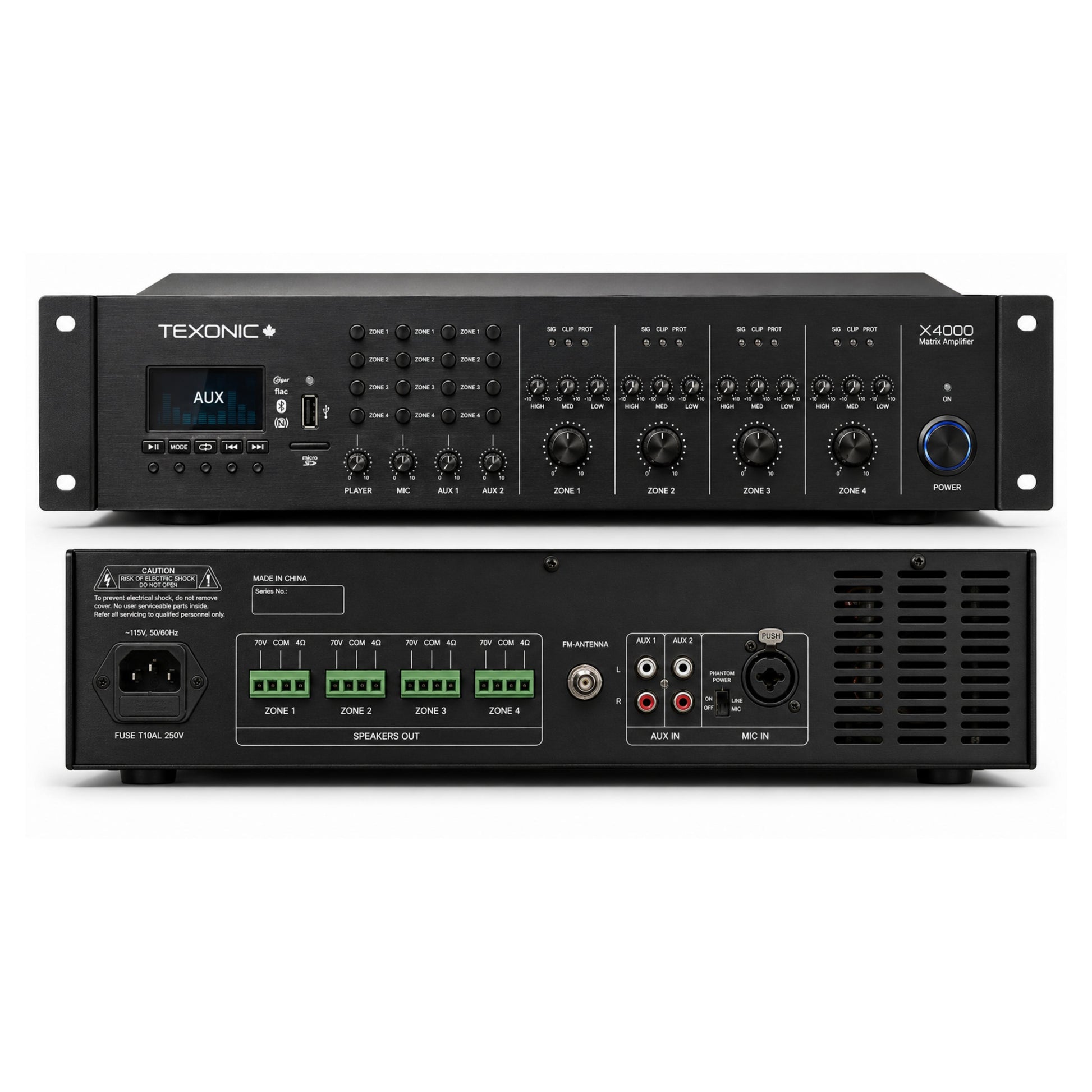

The TEXONIC X4000 is a 4-zone commercial matrix amplifier designed for business audio systems where different areas need independent source, volume and tone control.

Each of the four zones can independently select the built-in media player, microphone input, AUX 1 or AUX 2. With 4 × 120W rated output, 70V commercial speaker support and compatible 4–16Ω low-impedance operation, the X4000 is well suited to restaurants, retail stores, offices, gyms, schools, clinics and hospitality spaces.

Built-in Bluetooth, FM radio, USB and Micro SD playback provide convenient local music sources without requiring a separate player.

4 × 120W Rated Output 4 Input / 4 Output Matrix 70V or 4–16Ω Output Bluetooth / FM / USB / Micro SD
Manual

Product Overview

The X4000 is designed for commercial installations that need different audio sources in different areas from one central amplifier.

Its 4 × 4 matrix lets each of the four output zones independently select the built-in media player, microphone input, AUX 1 or AUX 2. Zones can play the same source or different sources, with independent output volume and HIGH, MID and LOW tone controls.

With 4 × 120W rated output, 70V constant-voltage speaker support and compatible 4–16Ω low-impedance operation, the X4000 is a practical solution for multi-zone background music, paging and distributed commercial audio.

Best For Restaurants, retail stores, offices, gyms, schools, clinics, showrooms, hospitality spaces, and multi-room commercial audio systems.
System Fit Four-zone systems where each area needs separate volume, tone, and source routing.

Key Features

  • 4-zone matrix amplifier with 4 × 120W rated output
  • Maximum power output up to 4 × 200W

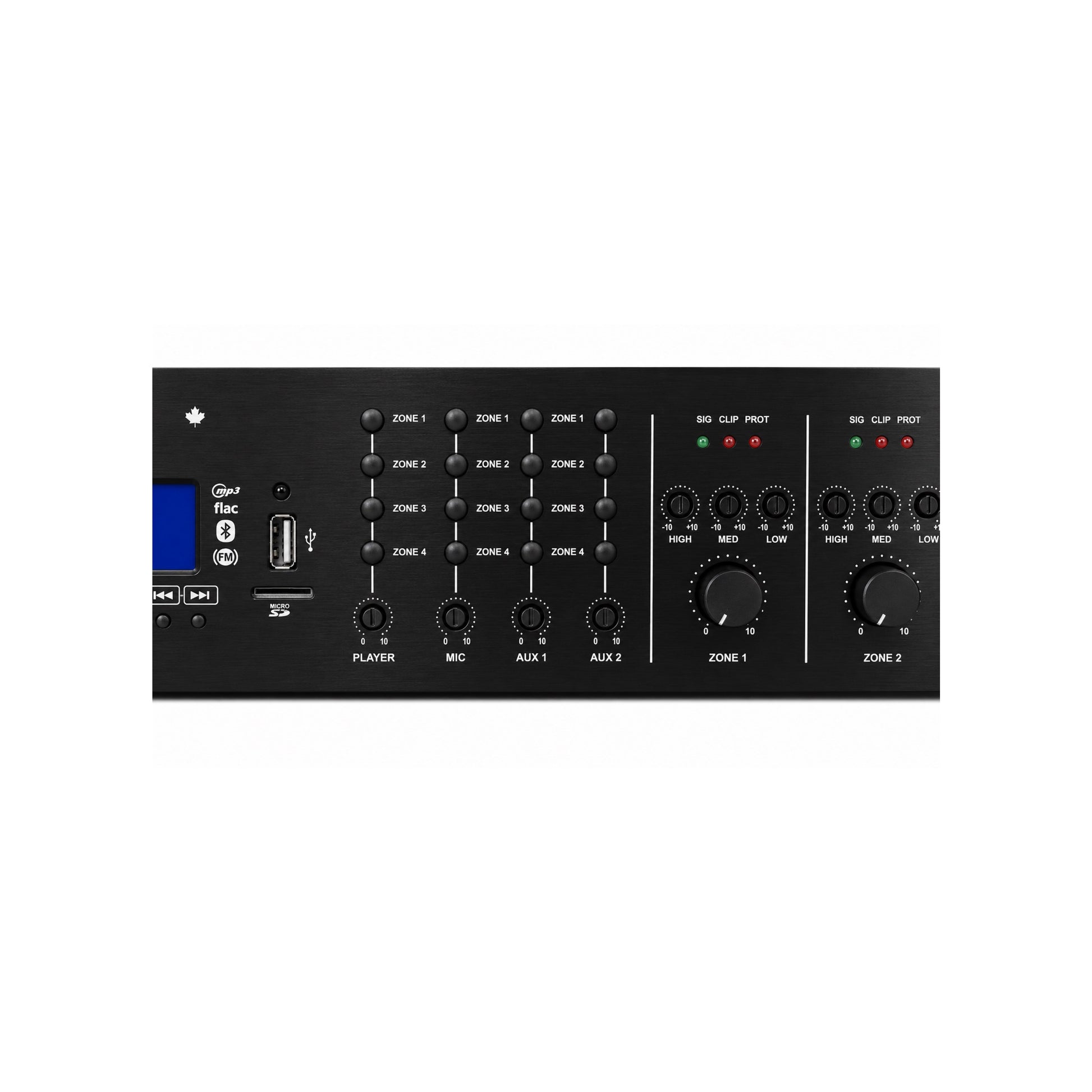

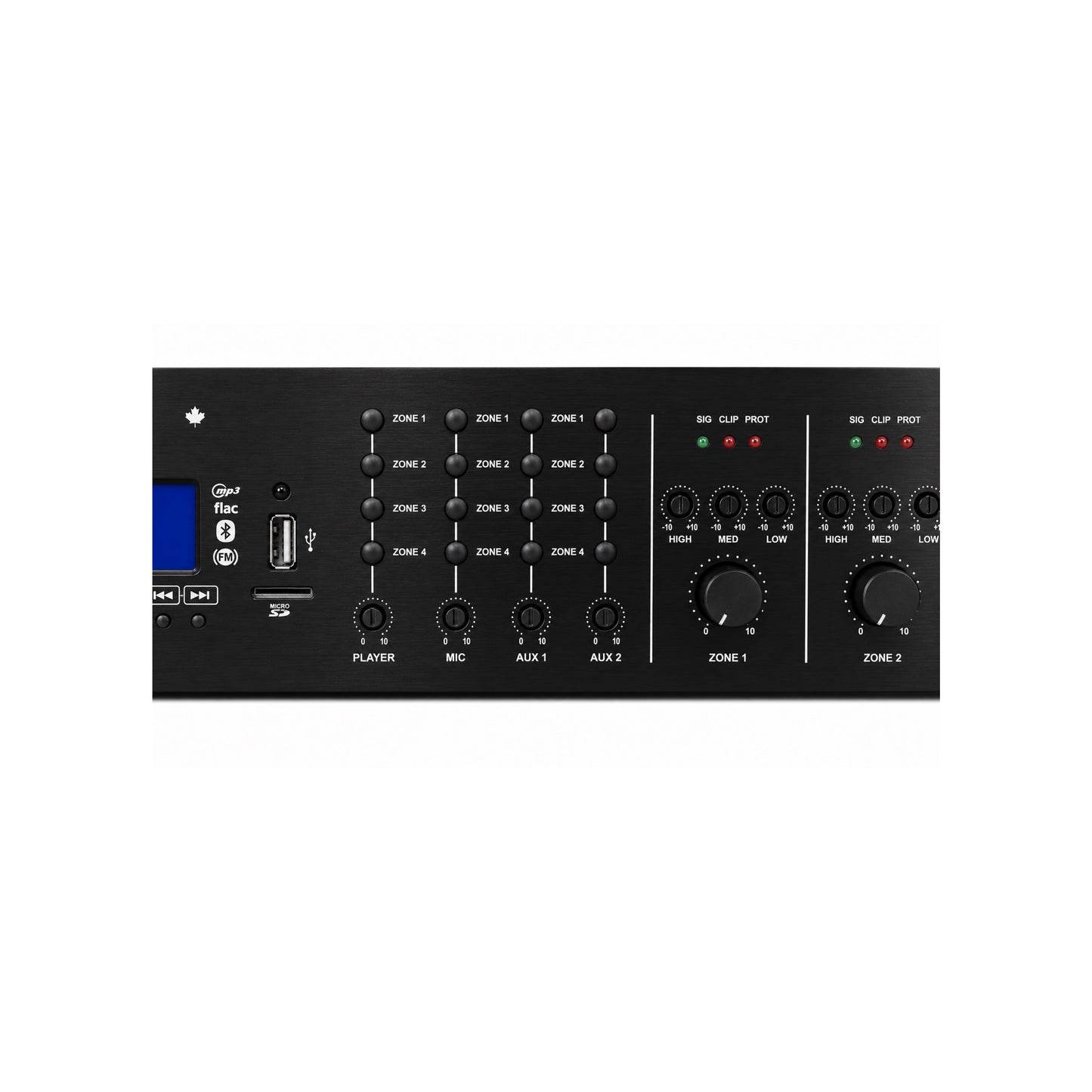

  • 4 input / 4 output matrix selector for flexible source routing
  • Each zone can select media player, microphone, AUX 1, or AUX 2
  • Supports 70V constant-voltage speaker systems
  • Supports 4–16Ω low-impedance speaker operation

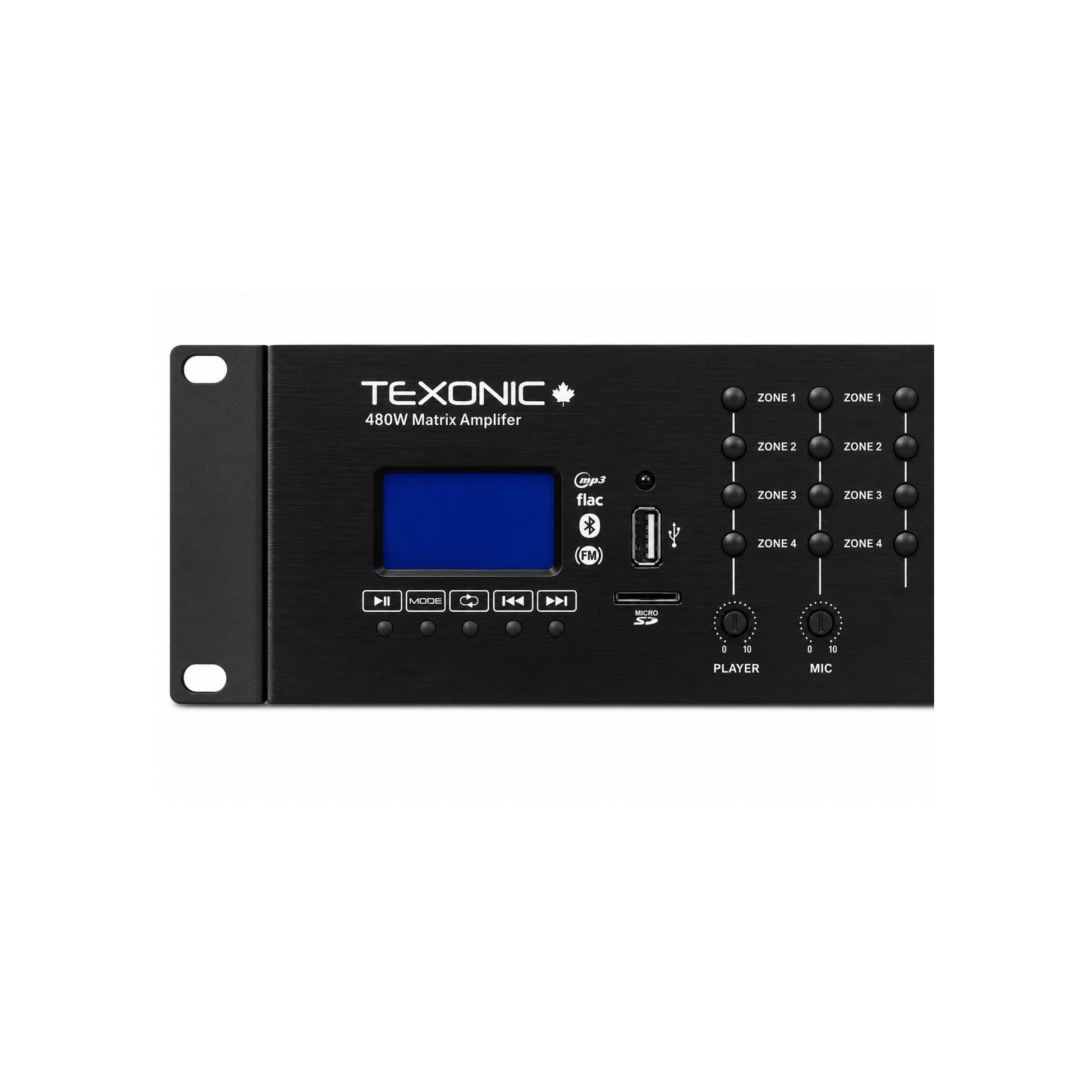

  • Built-in Bluetooth, FM tuner, USB, and Micro SD media player

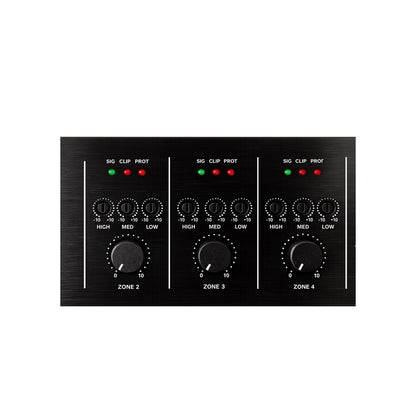

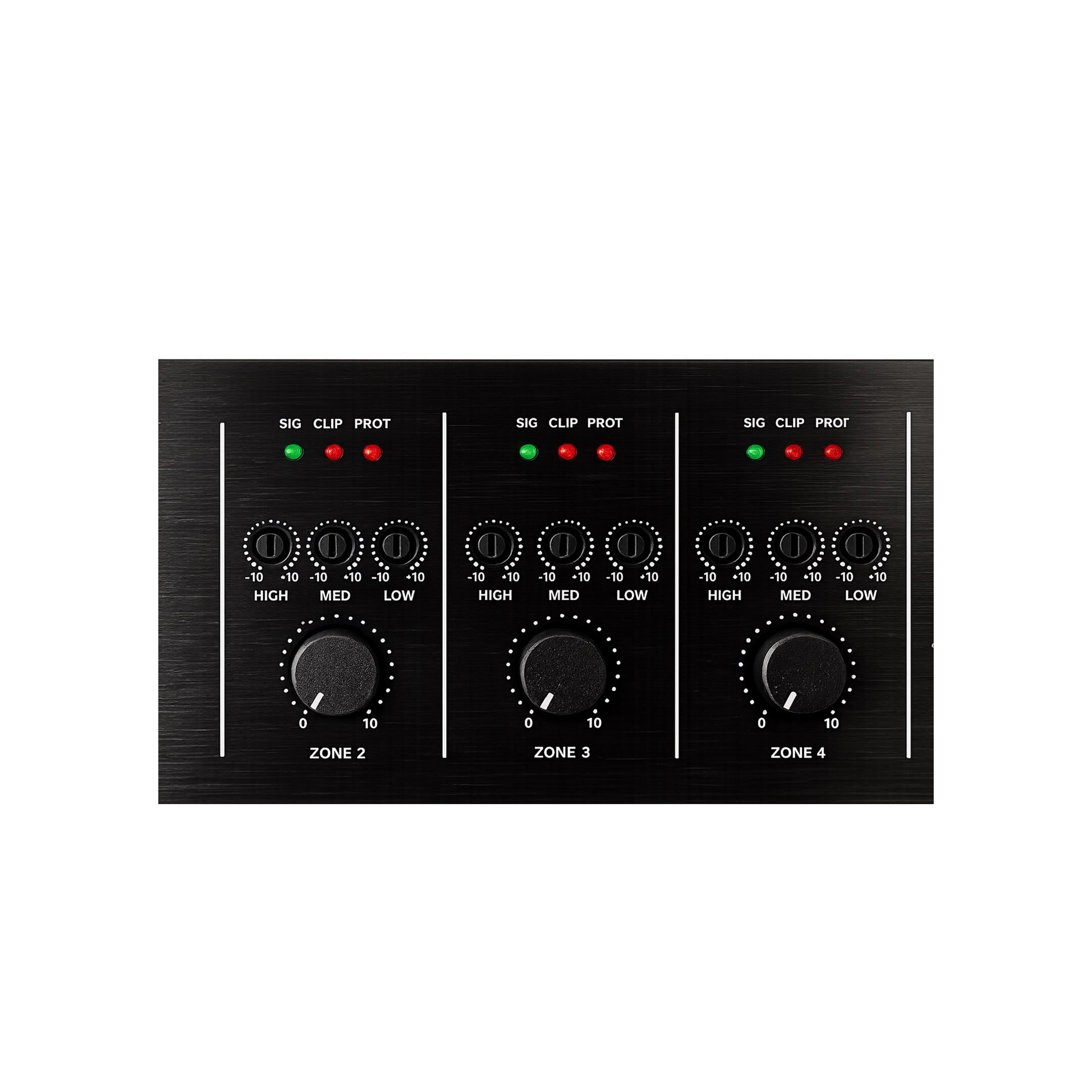

  • Per-zone HIGH, MID, and LOW tone control
  • Main output volume control for each zone

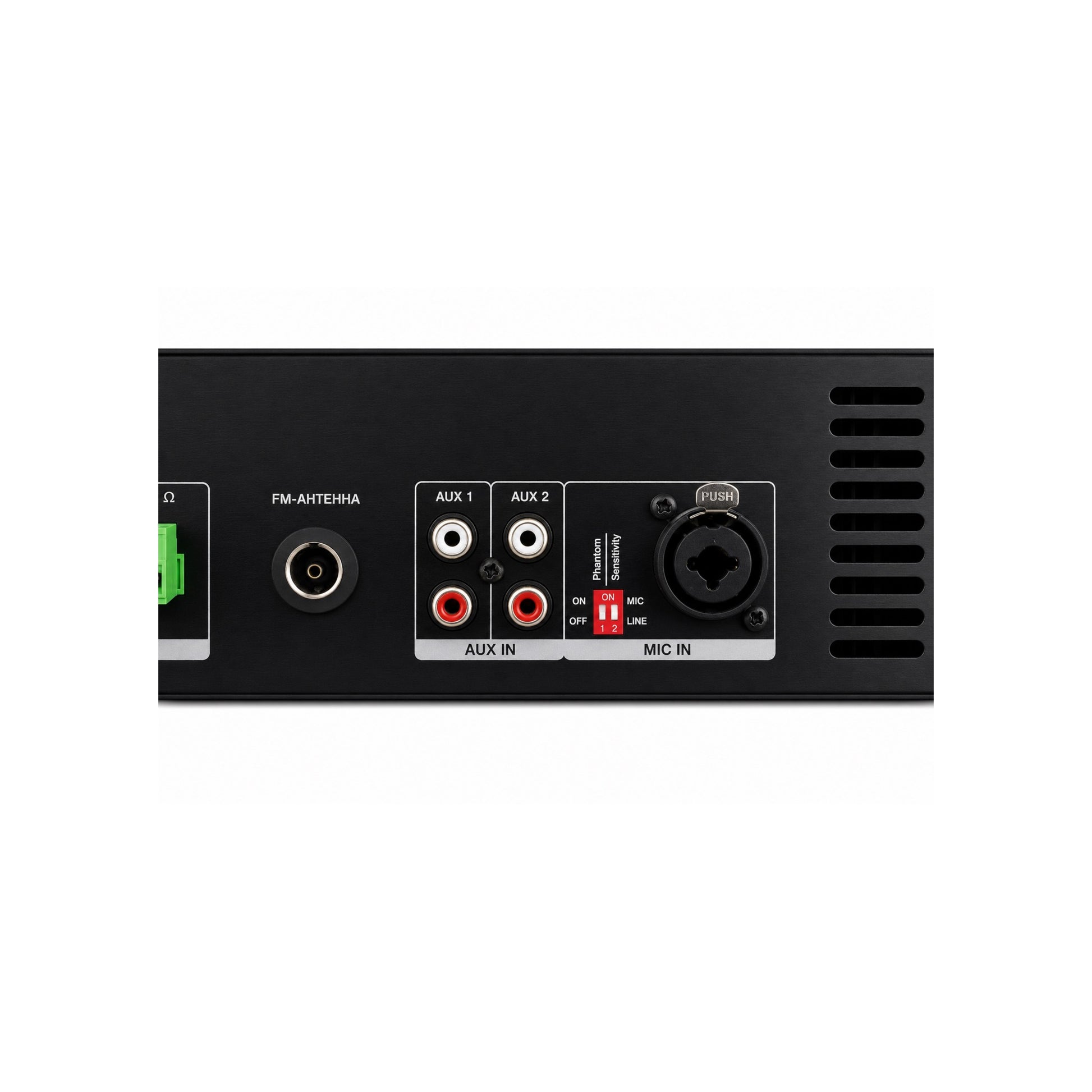

  • Balanced XLR microphone / line-level input
  • MIC/LINE sensitivity selector and 48V phantom power switch
  • SIG, CLIP, and PROT indicators for each zone

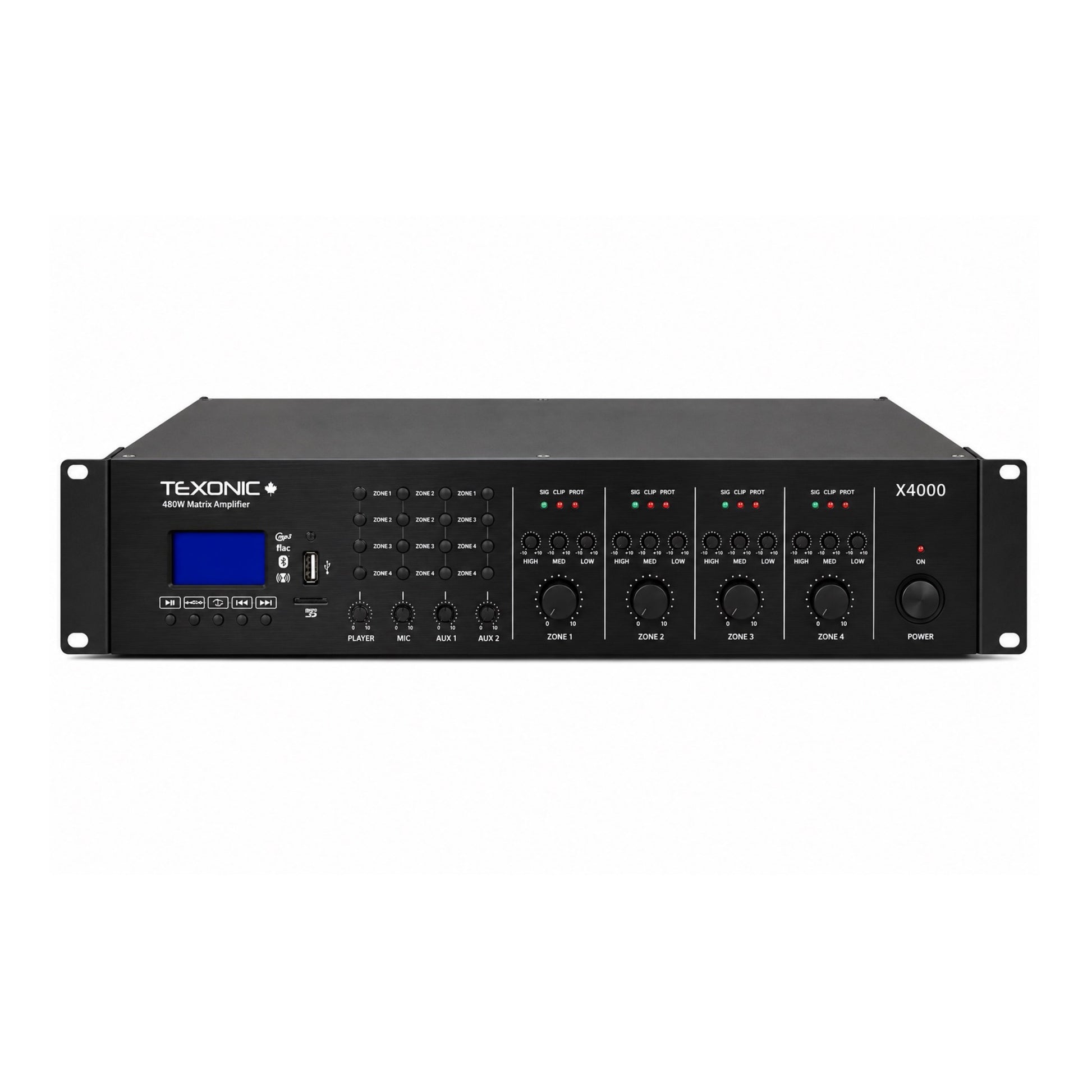

  • Standard 2U, 19-inch rack-mount chassis
  • Remote control and rack-mount hardware included

Specifications

Brand TEXONIC
Model X4000
Amplifier Type 4-zone commercial matrix amplifier
Rated Output Power 4 × 120W
Maximum Power 4 × 200W

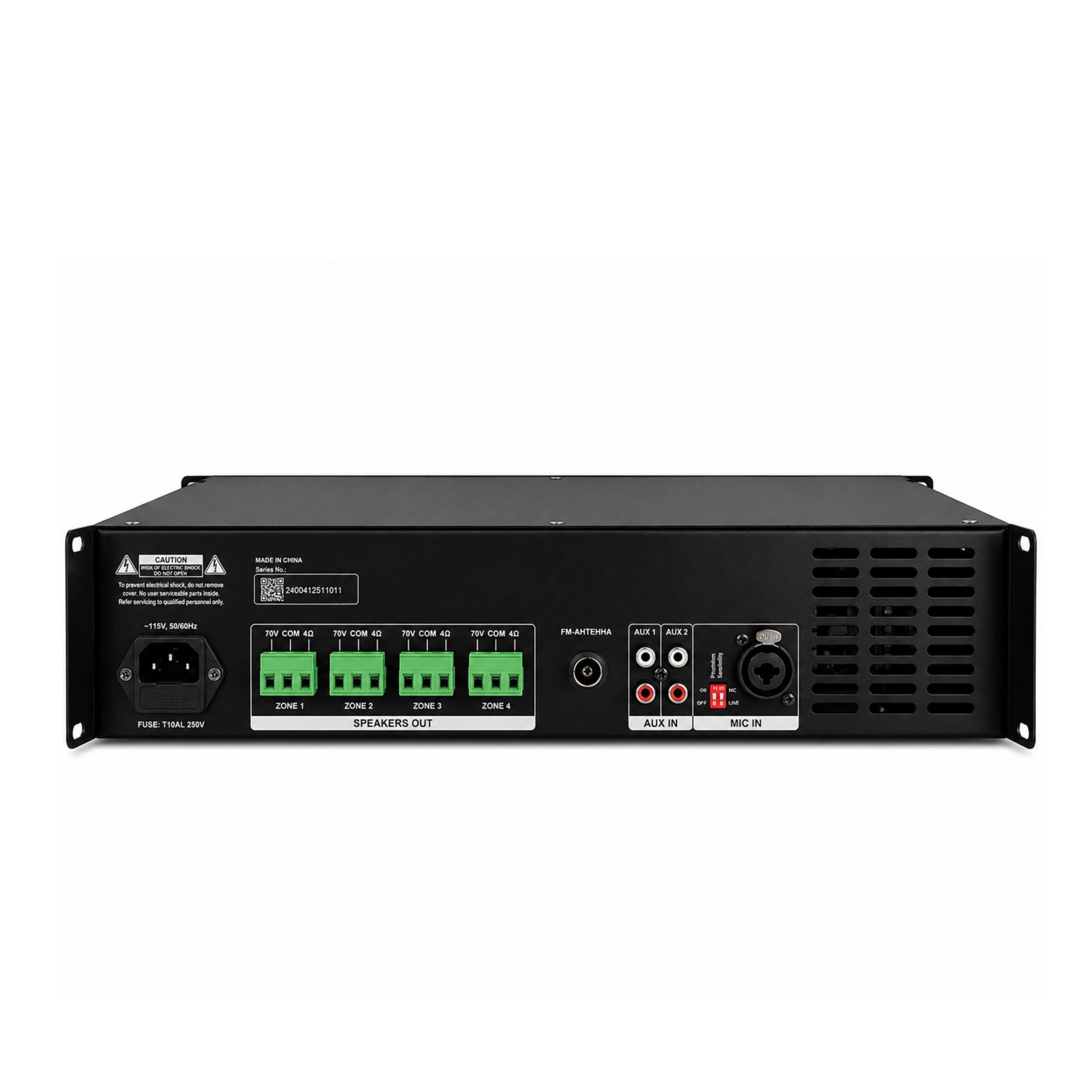

Output Mode 70V constant voltage / 4–16Ω low impedance
70V Output Impedance 40.8Ω
Matrix Routing 4 input / 4 output source selector
Media Player Bluetooth, FM tuner, USB, and Micro SD
Inputs Media player, microphone / line input, AUX 1, AUX 2
Microphone Input Balanced XLR microphone / line-level input
Phantom Power 48V phantom power switch
Static Power Consumption 25W
Power Requirements 115V, 50/60Hz
Frequency Response 80Hz – 18kHz ±3 dB
Total Harmonic Distortion <0.3% @ 1kHz, 1/3 rated power
Signal-to-Noise Ratio MIC ≥66 dB / AUX ≥80 dB, A-weighted
MIC Input Sensitivity 12 mV ±0.5 dB
AUX Input Sensitivity 250 mV ±0.5 dB
High Tone Control ±9 dB @ 10kHz ±1.5 dB
Mid Tone Control ±9 dB @ 1kHz ±1.5 dB
Low Tone Control ±9 dB @ 100Hz ±1.5 dB
Rack Size 2U, 19-inch rack-mount chassis
Product Dimensions 16.9″ × 13.8″ × 3.5″ / 43 × 35 × 8.8 cm
Net Weight 27.6 lb / 12.5 kg
Connection Notice: Use the correct speaker-output mode for each zone. Do not mix 70V and low-impedance 4–16Ω speakers on the same zone output. Confirm speaker load, wiring polarity and output mode before powering the amplifier.

What’s Included

1 × TEXONIC X4000 4-Zone Matrix Amplifier
1 × Remote Control
Rack-Mount Hardware
1 × AC Power Cable
User Manual
Product Note: Specifications and product design may change without notice.
